Understanding Tungsten Carbide Ball Specifications

Before initiating supplier outreach, establish your technical baseline requirements.

Critical Material Properties

Hardness Performance:

• Standard tungsten carbide achieves HRA 88-92 (Rockwell A scale)

• Cobalt binder content typically ranges 6-12%

• Superior wear resistance: 30-50x longer lifespan than chrome steel in abrasive slurry applications (based on comparative wear testing in ball mill operations at 75% critical speed, 40% slurry concentration)

Composition Standards:

• Primary carbide phase: WC (Tungsten Carbide) 88-94%

• Binder material: Cobalt (Co) or Nickel (Ni) alloys

• Grain size: 0.5-1.5 μm for precision applications

• η-phase control: Critical defect phase (Co3W3C) must be <2% by volume to prevent brittle failure

Density & Porosity Verification:

• Target density: 14.5-15.0 g/cm³

• Deviation tolerance: ±0.2 g/cm³ maximum

• Porosity classification: Type A (≤0.02 mm pores), Type B (≤0.1 mm), per ISO 4505 inspection standards

• Low-density or high-porosity units indicate improper sintering or contamination

Mechanical Integrity:

• TRS (Transverse Rupture Strength): Minimum 2,400 MPa for bearing applications

• Fracture toughness (KIC): Target 10-14 MPa·m^1/2 (higher cobalt content improves toughness but reduces hardness)

• Magnetic saturation: Typically 15-30 emu/g depending on cobalt content (critical for non-magnetic application screening)

Precision Grade Classification

Tungsten carbide balls commonly adopt steel ball precision grading conventions (derived from ISO 3290-1 for steel balls, adapted as industry practice for carbide spheres). Note that no universal ISO standard specifically governs tungsten carbide ball tolerances; manufacturers typically reference:

• Customer technical drawings

• ANSI/AFBMA standards (for bearing applications)

• Internal enterprise specifications validated through customer acceptance

Grade	Spherical Deviation	Surface Roughness	Application Example
G5	≤0.13 μm	Ra 0.010 μm	Ultra-precision bearings, metrology
G10	≤0.25 μm	Ra 0.014 μm	High-speed spindle bearings
G25	≤0.65 μm	Ra 0.025 μm	Check valves, ball screws
G100	≤2.5 μm	Ra 0.100 μm	Grinding media, impact tools

Always request supplier's inspection methodology and acceptance criteria documentation when specifying precision grades.

---

Real-World Application: Case Study

How We Reduced Valve Failure Rates by 43% Through Precision Upgrading

Client Challenge:
A European hydraulic valve manufacturer experienced 12% field failure rates within 18 months due to ball seat wear in high-pressure (350 bar) pneumatic control valves. Their existing G100-grade carbide balls from a low-cost supplier exhibited:

• Inconsistent sphericity (actual deviation 3.2-4.1 μm vs. specified 2.5 μm)

• Surface microcracking visible under 500x magnification

• Density variation 14.2-14.7 g/cm³ (indicating incomplete sintering)

Our Solution:
After sample evaluation in our laboratory, we identified η-phase contamination (4.2% by volume) and Type C porosity (0.15 mm pore clusters) as root causes. We proposed:

1. Upgrade to G25 precision grade with guaranteed ±0.3 μm sphericity tolerance

2. Extended sintering cycle: 1450°C for 90 minutes (vs. competitor's 60 minutes) to achieve 99.8% theoretical density

3. Post-sinter HIP treatment (Hot Isostatic Pressing) to eliminate residual porosity

4. 100% automated optical inspection to screen surface defects >5 μm

Measurable Results (12-month field tracking):

• Failure rate reduced to 6.8% (43% improvement)

• Average operational lifespan extended from 14 months to 28 months

• Customer's warranty claim costs decreased by €127,000 annually

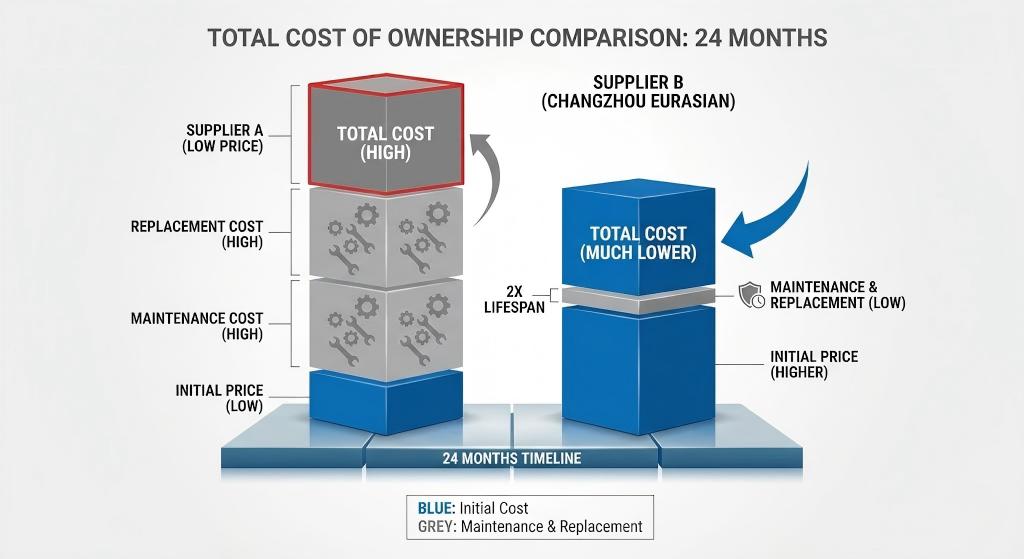

• Unit cost increase of 18% offset by 2.6x total cost of ownership savings

This case demonstrates why precision grade selection must align with application severity—not just initial purchase price.

---

5-Point Supplier Qualification Framework

1. Manufacturing Capability Assessment

Essential Production Technologies:

• Cold isostatic pressing (CIP): Ensures uniform density distribution (target pressure: 200-300 MPa)

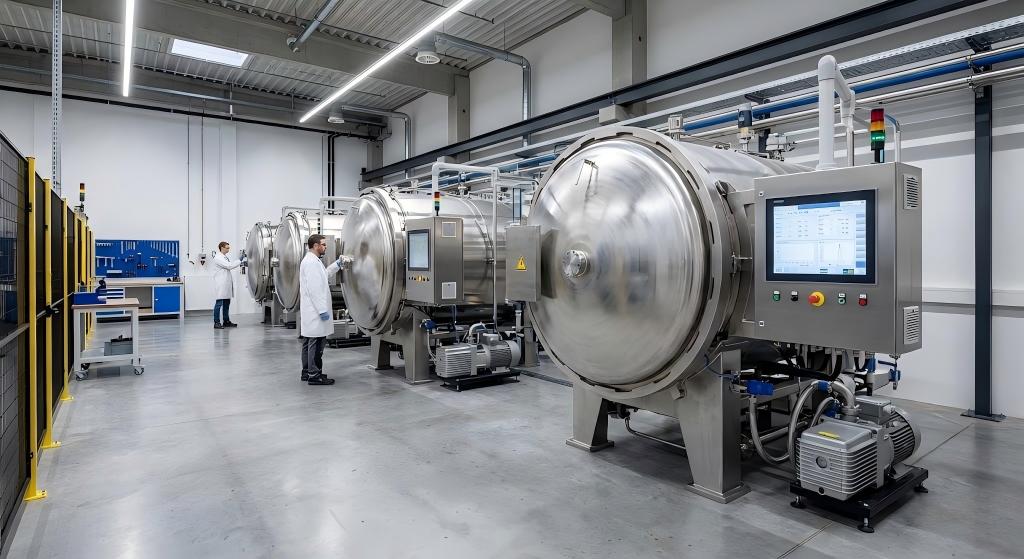

• Vacuum sintering furnaces: Prevents oxidation during 1350-1500°C sintering cycles (atmosphere control: <5 ppm O2)

• Centerless grinding equipment: Achieves sub-micron sphericity tolerances

• HIP facilities (optional): For eliminating residual porosity in ultra-critical applications

Red Flags to Avoid:

• Suppliers unwilling to disclose sintering temperature profiles or furnace atmosphere control data

• Absence of in-house grinding capabilities (outsourced finishing reduces quality control)

• Limited size range (indicates tooling constraints)

• No mention of grain size control or powder supplier certification

Our Manufacturing Standards:At Changzhou Eurasian Steel Ball Co., Ltd., our IATF 16949:2016 certified facility operates dedicated CQI-9 standard heat treatment lines. Our precision grinding workshops utilize German-engineered centerless grinders capable of holding ±0.5 μm tolerances across production batches. All sintering cycles are logged with real-time temperature/atmosphere monitoring per automotive industry requirements.

2. Quality Control Infrastructure

Mandatory Testing Equipment:

• Roundness measuring instruments: Must verify sphericity to 0.08 μm resolution (e.g., Talyrond systems)

• Rockwell hardness testers (HRA scale): For carbide material hardness verification (ASTM E18 calibration required)

• Optical or ICP spectrometers: Confirm tungsten and cobalt composition percentages (accuracy: ±0.1% for major elements)

• Surface profilometers: Measure Ra (surface roughness) to 0.005 μm accuracy

• Metallographic microscope: For η-phase detection and porosity classification (minimum 500x magnification)

• Magnetic saturation tester: Verify cobalt content consistency (especially for applications requiring <50 emu/g limits)

Request These QC Records:

• Statistical Process Control (SPC) charts showing Cpk values ≥1.33 for sphericity and diameter

• Material certificates tracing tungsten powder origin (WC powder grade: typically WC-1 to WC-3 per supplier specifications)

• Dimensional inspection reports with minimum 50-piece sample sizes per production lot

• Porosity inspection reports with pore type classification per ISO 4505

• TRS test data from 3-point bend testing (minimum 5 samples per batch for critical applications)

Our Quality Lab:Our ISO-accredited laboratory houses advanced metrology equipment including:

• Talyrond roundness tester (0.01 μm resolution)

• Rockwell hardness tester calibrated to ASTM E18 standards

• Optical emission spectrometer for WC/Co ratio verification

• Vibration measurement system for dynamic performance testing

• Metallographic preparation station with image analysis software for microstructure evaluation

3. Certification & Compliance Validation

Material & Process Standards:

• ISO 4499-2: Hardmetals (cemented carbides) – Metallographic determination of microstructure (porosity & η-phase)

• ISO 3878: Hardmetals – Vickers hardness test

• ISO 4505: Classification of porosity types in cemented carbides

• RoHS/REACH: Environmental compliance for European markets

Application-Specific Certifications:

• IATF 16949: Automotive industry quality management (critical for powertrain applications)

• AS9100: Aerospace quality standards

• FDA compliance: For food processing or pharmaceutical equipment (requires additional surface cleanliness validation)

Third-Party Verification:Always request Bureau Veritas (BV) or equivalent audit reports. Factory audits should cover:

• Raw material traceability systems (tungsten powder sourcing records)

• Calibration records for measurement equipment (annual external calibration mandatory)

• Non-conforming product control procedures

• Sintering furnace temperature uniformity surveys (±10°C across work zone maximum deviation)

Changzhou Eurasian Steel Ball holds IATF 16949:2016 and Bureau Veritas factory certifications, ensuring automotive-grade quality systems with full powder-to-finished-ball traceability.

4. Tungsten Carbide Ball Price Analysis

Cost Structure Breakdown:

Tungsten carbide ball price varies significantly based on:

• Raw material costs (as of Q4 2025 data):

• APT (Ammonium Paratungstate): $415-480/MTU (Asian markets), $825-900/MTU (European spot markets) – Source: Metal Bulletin, London Metal Exchange reports

• Cobalt metal powder: $32,000-46,000/metric ton (fluctuates with DRC mining supply) – Source: Fastmarkets cobalt index

• WC powder conversion: Add $15-25/kg processing cost from APT to carbide-grade powder
